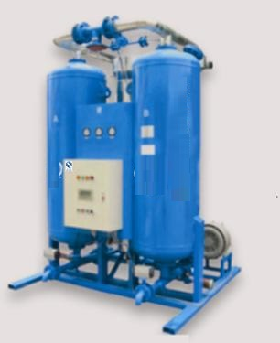

Blower Purge Desiccant Compressed Air Dryer

Energy saving:Blower desiccant air dryer make use of the helical blower in order to improve the efficiency of compressed air system.it can deliver 100% air supply sa as to reduce 20%cost of air compressor in operation.

Description
Inquiry

Work Condition and Technical Data

Max working pressure: 1.0MPa,

Min operating pressure: 0.4MPa,

Max inlet air temperature: 48℃,

Min inlet air teperature: 4℃,

Max ambient air temperature: 48℃,

Min ambient air temperature: 4℃

model	capacity		blower(kw)	heater rated output(kw)	full Load(kw)	net weight（kg）	dimensions（mm）
model	Nm³/min	scfm	blower(kw)	heater rated output(kw)	full Load(kw)	net weight（kg）	length	width	height
HSD-15GXF	17	600	2.5	12	12	958	1655	1670	1980
HSD-20GXF	23	800	2.2	14	14	1115	1760	1700	2010
HSD-25GXF	27	950	2.0	16	16	1422	1800	1780	2105
HSD-30GXF	33	1250	2.8	19	19	1852	1865	1860	2120
HSD-40GXF	45	1590	7.5	28	32	2230	1980	1930	2165
HSD-50GXF	55	1940	7.0	32	35	2430	2080	1985	2200
HSD-60GXF	65	2280	5.6	39	41	2837	2150	2105	2320
HSD-70GXF	75	2650	10.3	45	50	3685	2245	2200	2380
HSD-90GXF	90	3180	12.8	53	52	4233	2340	2320	3420
HSD-100GXF	100	3500	14.0	58	59	4660	2385	2410	3525
HSD-120GXF	120	4240	14.4	70	70	5602	2460	2520	3610
