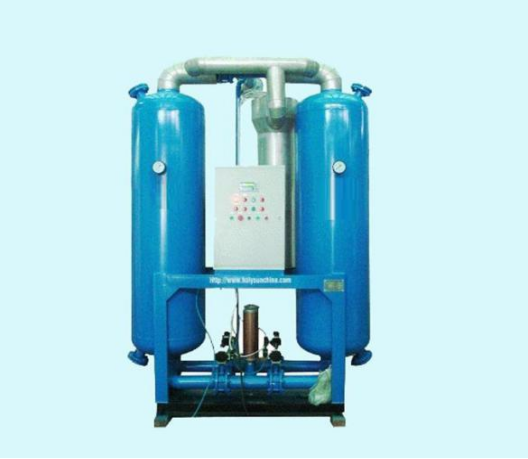

Externally Heated Purge Desiccant Air Dryer

Externally heated purge desiccant air dryer is a new economic product developed by our company.This series product integrating advantages of heat-exists purge and heatless purge,externally heating the purge type air, reduce it’s consumption.It efficiently avoids the disadvantages of short switching time and consuming most of the purge air of the desiccant air dryer and wasting electricity of heat-exists air dryer.This product has got rationally switch time,little purge air consumption,also being the most economical desiccant dryer in this line and widely used in metallurgy,electrical.electron,foodstuff,chemical industry,petroleum,medicine,light industry,cigarette,apparatus,auto industry and so on.

Description
Inquiry

Adsorption Element:Externally Heated Desiccant Air Dryer is integrated the advantages of PSA(Pressure Swing Adsorption）&TSA（Temperature Swing Adsorption).Absorbing during normal temperature and dense water vapor,purging during relatively high temperature and less density of water vapor.Thant’s to say,absorb water of sorbent,purify during the purging period by superior purge air of thermal diffusion pressure difference.

Work Condition and Technical Data

Inlet temperature : 0~45℃,

Inlet oil content: ≤0.01ppm,

Working pressure: 0.6-1.0MPa,

Designed dew point: -40~-70℃,

Purge air: ≤4％~6％,

Desiccant: activated alumina﹠molecular sieve,

Purge mode: externally heated purge,

Working method: continuing alternative working beween two towers ,

Working periods: T=60-180min,

Control mode: micro-program controller ,

Installation mode: indoor,non-basement .

model	capacity		heater power(kw)	air connection	net weight（kg）	dimensions（mm）
model	Nm³/min	scfm	heater power(kw)	air connection	net weight（kg）	length	width	height
HSM-1MXF	1.2	42	1.2	ZG1"	190	679	570	1303
HSM-2MXF	2.4	85	1.5	ZG1"	300	679	570	1753
HSM-3MXF	3.8	132	2	DN40	390	819	570	1513
HSM-6MXF	6.5	230	3	DN40	550	971	800	1761
HSM-8MXF	8.5	300	3.5	DN50	620	1044	850	1895
HSM-10MXF	10.7	380	3.9		910	1144	890	1805
HSM-13MXF	13	460	3.9		1060	1144	890	2015
HSM-15MXF	16	570	5.1	DN80	1060	1368	1050	1908
DH-20MXF	23	800	5.4		1420	1368	1050	2217
DH-25MXF	27	950	7		1630	1472	1110	2241
DH-30MXF	33	1250	8.2		2100	1573	1150	2218
DH-40MXF	45	1590	10	DN100	2600	1692	1310	2403
DH-50MXF	55	1940	12.5	DN125	3100	1975	1350	2413
DH-60MXF	65	2280	15		3700	1938	1640	2680
DH-80MXF	85	2980	20.4		4600	2013	900	2870
DH-100MXF	100	3500	25.5	DN150	5200	2300	1500	2933
DH-150MXF	150	5300	40	DN200	7800	2700	1800	3429
DH-200MXF	200	7000	52	DN250	8200	1900	2000	3529
