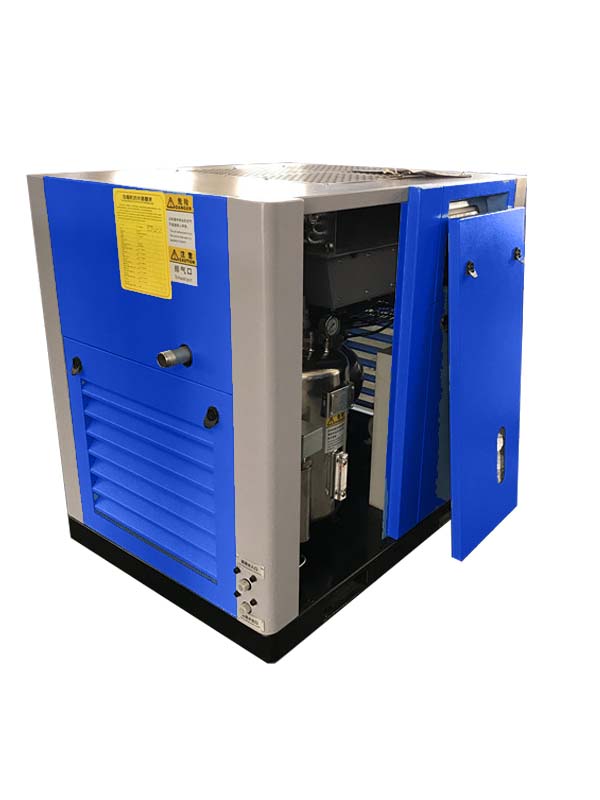

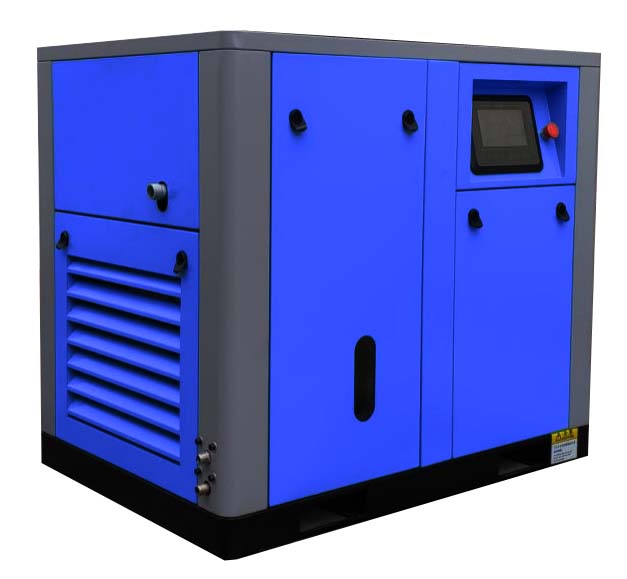

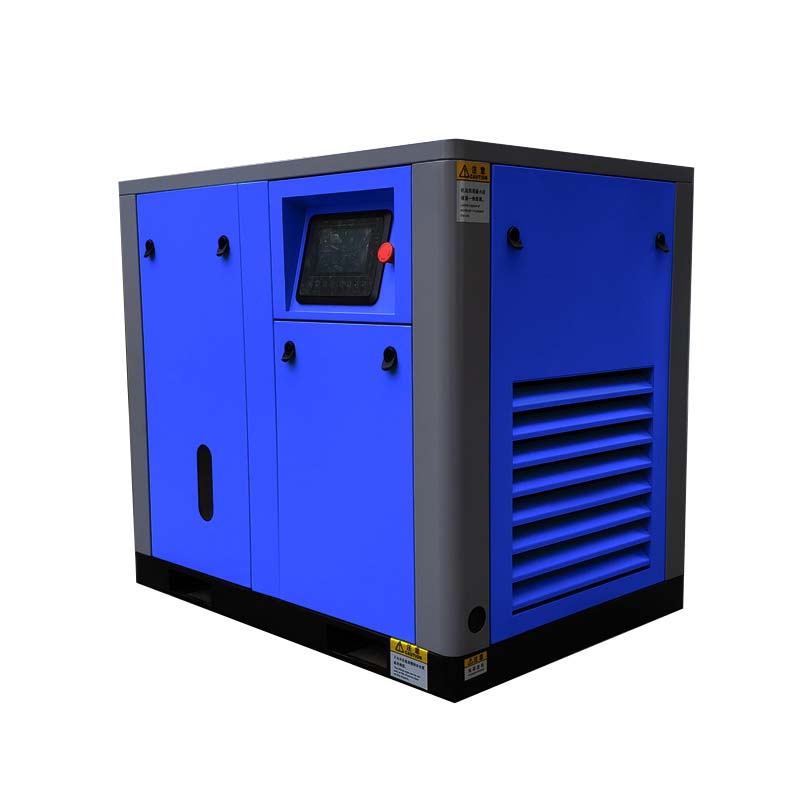

Oil-free screw air compressor

Oil-free screw air compressor

1. 380V/50Hz/3ph， 220v/60hz/3ph.
2. Y-Δ starting/Frequency start
3. 72±5, tested according to the international GB/T4980-2003 standard 4. Ambient temperature + 15 ℃

Description
Inquiry

Model	Way of Transmission	Air flow /Pressure		Power		Inject water volume	Cooling water volume	Way of Cooling	Speed	Connect	Weight	Diemention (mm)
Model	Way of Transmission	m3/min/bar		KW	HP	L/min	L/min		rpm	inch	Kg	L	W	H
RMW-10A	Coupling	1.16/8	1.04/10	7.5	10	27		Air	2930	G1"	500	1100	800	1000
RMW-15A	Coupling	1.56/8	1.36/10	11	15	27		Air	2930	G1"	500	1100	800	1000
RMW-20A	Coupling	2.4/8	2.12/10	15	20	27		Air	2930	G1"	600	1400	1000	1200
RMW-25A	Coupling	3.1/8	2.62/10	18.5	25	27		Air	2940	G1"	600	1400	1000	1200
RMW-30A	Coupling	3.5/8	3.13/10	22	30	27		Air	2940	G1"	655	1400	1000	1200
RMW-40A	Coupling	5.0/8	4.2/10	30	40	40		Air	2940	G11/2"	1150	1920	1170	1320
RMW-50A	Coupling	6.1/8	5.22/10	37	50	40		Air	2940	G11/2"	1200	1920	1170	1320
RMW-60A	Coupling	7.3/8	6.13/10	45	60	40		Air	2960	G2"	1320	1920	1170	1320
RMW-75A	Coupling	9.6/8	8.6/10	55	75	100	150	Water	2960	G2"	1520	1930	1320	1525
RMW-100A	Coupling	12.5/8	11.42/10	75	100	100	200	Water	2960	G2"	1620	1930	1320	1525
RMW-125A	Coupling	16.3/8	14.52/10	90	125	180	250	Water	2970	DN80	1800	1930	1320	1525
RMW-150A	Coupling	19.4/8	16.9/10	110	150	200	270	Water	2970	DN80	3100	2150	1600	1680
RMW-175A	Coupling	22.21/8	20.38/10	132	175	240	320	Water	2970	DN80	3250	2150	1600	1680
RMW-215A	Coupling	25.5/8	24.0/10	160	215	240	400	Water		DN100	4500	2860	1500	1750
RMW-250A	Coupling	28.0/8	25.0/10	185	250			Water		DN100	4500	2860	1500	1750
RMW-270A	Coupling	33.0/8	27.0/10	200	270			Water		DN100	4500	2860	1500	1750
RMW-350A	Coupling	41.0/8	38.0/10	250	350			Water		DN100	5200	3320	1600	1840
