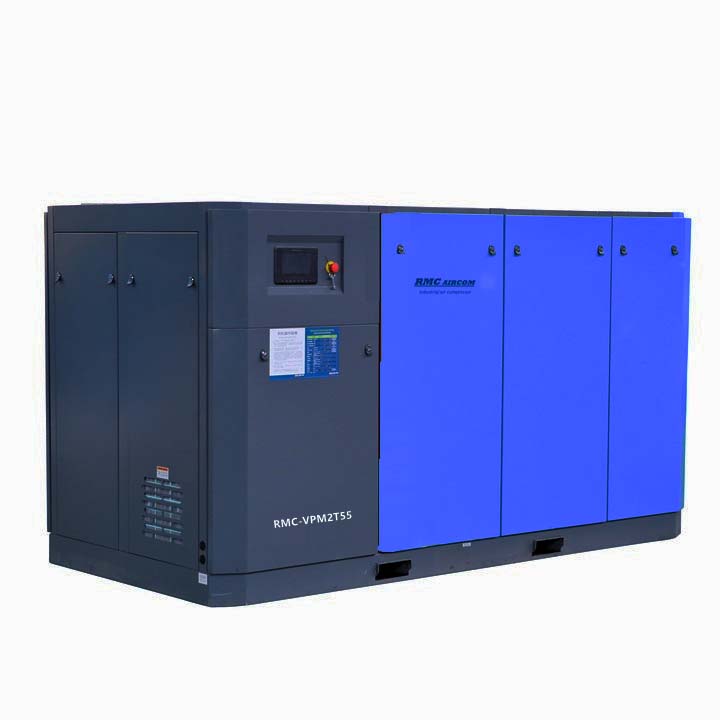

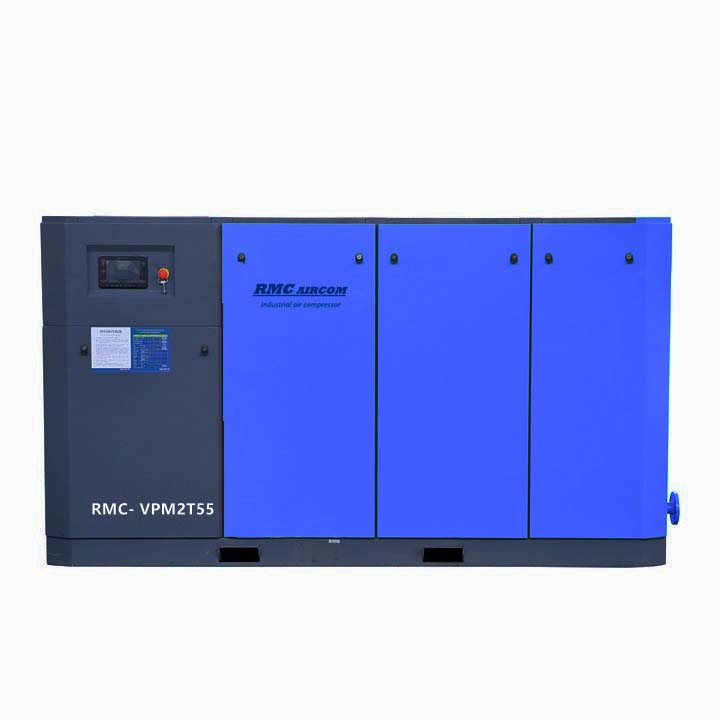

Two-stage Fixed speed screw air compressor
1，Two-stage compression stays closer to isothermal，compression with least power consumption.
2, Adopt two units of SKY Screw Rotors in two different sizes,ensure rational pressure distribution and lower，the compression ratio for each compression process.
3, High-end Configuration and Systemic Optimization
| MODEL | Air flow (m3/min) | Power(KW) | Noise (Db) | Discharge connection | Dimension ( mm) | Weight(KG) | |||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | Length | Width | Height | |||||
| RMC-V2T22 | 4.41 | 4.12 | 3.33 | 2.55 | 22 | 68 | G1 | 1440 | 830 | 1265 | 830 |
| RMC-V2T30 | 5.93 | 5.68 | 4.10 | 3.92 | 30 | 68 | G11/2 | 1500 | 940 | 1415 | 880 |
| RMC-V2T37 | 7.12 | 7.05 | 5.88 | 4.51 | 37 | 68 | G11/2 | 1500 | 940 | 1415 | 930 |
| RMC-V2T45 | 10.29 | 9.70 | 6.66 | 5.60 | 45 | 72 | G2 | 2000 | 1120 | 1590 | 1510 |
| RMC-V2T55 | 13.33 | 12.05 | 9.95 | 6.86 | 55 | 76 | DN50 | 2900 | 1470 | 1625 | 1750 |
| RMC-V2T75 | 15.68 | 15.19 | 12.54 | 10.00 | 75 | 76 | DN50 | 2900 | 1470 | 1625 | 1970 |
| RMC-V2T90 | 20.29 | 19.11 | 15.83 | 12.94 | 90 | 76 | DN65 | 3400 | 1757 | 1860 | 2670 |
| RMC-V2T110 | 24.30 | 23.52 | 19.80 | 14.91 | 110 | 76 | DN65 | 3400 | 1757 | 1860 | 2950 |
| RMC-V2T132 | 28.42 | 27.44 | 22.74 | 18.33 | 132 | 78 | DN80 | 3750 | 1900 | 1980 | 4570 |
| RMC-V2T160 | 33.32 | 31.85 | 27.44 | 22.64 | 160 | 78 | DN80 | 3750 | 1900 | 1980 | 4750 |
| RMC-V2T185 | 38.22 | 37.24 | 31.36 | 27.15 | 185 | 78 | DN100 | 3900 | 2100 | 1980 | 5800 |
| RMC-V2T200 | 42.34 | 41.16 | 37.34 | 31.26 | 200 | 78 | DN100 | 3900 | 2100 | 1980 | 6100 |
| RMC-V2T220 | 47.54 | 45.28 | 40.38 | 36.46 | 220 | 82 | DN100 | 4260 | 2182 | 2170 | 6200 |
| RMC-V2T250 | 51.45 | 49.98 | 44.88 | 39.20 | 250 | 82 | DN100 | 4260 | 2182 | 2170 | 6500 |
| RMC-V2T280 | 57.80 | 55.60 | 49.50 | 44.60 | 280 | 83 | DN100 | 4260 | 2182 | 2170 | 6800 |
| RMC-V2T280W | 57.80 | 55.60 | 49.50 | 44.60 | 280 | 82 | DN125 | 3800 | 2200 | 2250 | 8550 |
| RMC-V2T315 | 63.10 | 61.30 | 55.20 | 49.70 | 315 | 85 | DN125 | 4600 | 2240 | 2260 | 8600 |
| RMC-V2T315W | 63.10 | 61.30 | 55.20 | 49.70 | 315 | 82 | DN125 | 3800 | 2200 | 2250 | 8850 |
| RMC-V2T355 | 73.00 | 72.00 | 61.10 | 54.50 | 355 | 85 | DN125 | 4600 | 2240 | 2260 | 9200 |
| RMC-V2T355W | 73.00 | 72.00 | 61.10 | 54.50 | 355 | 82 | DN125 | 3800 | 2200 | 2250 | 8970 |
