100% Oil-Free Air

The simple tip seal design of a scroll compressor ensures no

metal-to-metal contact anywhere. Therefore, the technology

does not require lubrication, ensuring high-quality, oil-free air.

Application:

• Hospitals, labs, universities

• Pharmaceutical, biotech

• Medical devices, plastics

• Canning, beverages, brewery

• Glass manufacturing

• Electronics, semiconductor

• Food processing

• Electronics assembling

• Textiles industry

• Bottling, distillery

• Printing industry

• Turf management

Product Description

Scroll Air Compressor Compression Principle:

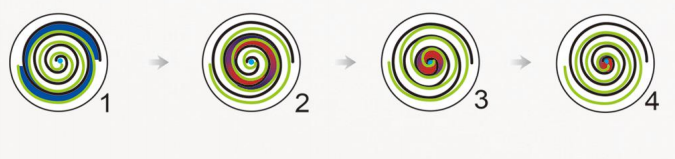

• The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram,  the air is sucked into the space between the orbiting scroll and the stationary scroll, the volume of the crescent compression chamber gradually decreases, and then the air is discharged from the exhaust port at the center of the stataionary scroll after being compressed.

• High-precision processing technology is required to produce the components that make up a Scroll Oil Free Air Compressor.

•

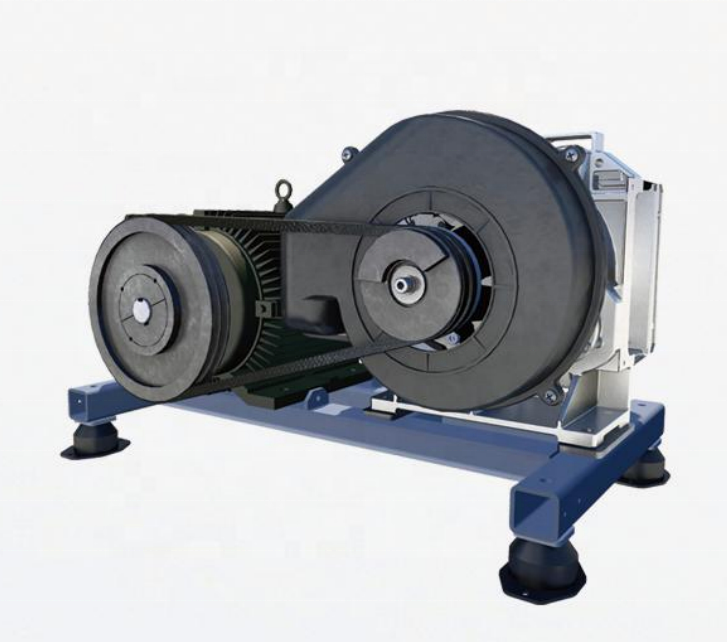

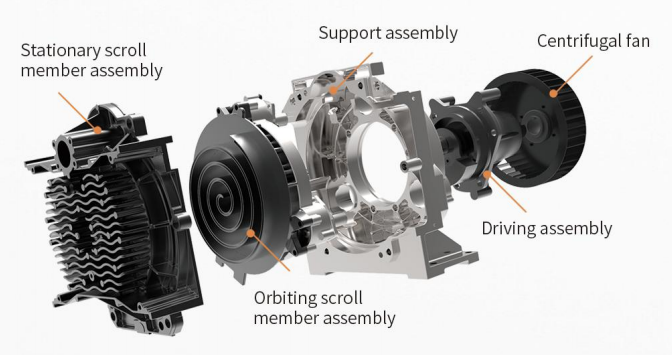

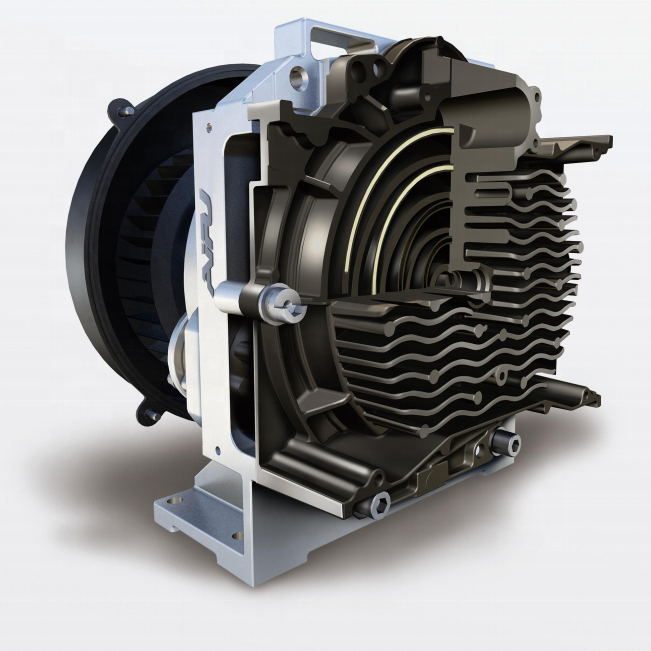

Main Structure of Scroll Oil Free Air end.

Fetures of Scroll oil free air compressors:

• Low specific power, High energy efficiency.

• Long term warranty for 2 years, and low maintenance.

• Small footprint & extremely quite operation.

• Noise of the complete system equipped with 3.7kw scroll oil free compressor is under 59dB.

• Low vibration,  under standard working conditions, the vibraion of main unit is less than 7.1mm/s.

•

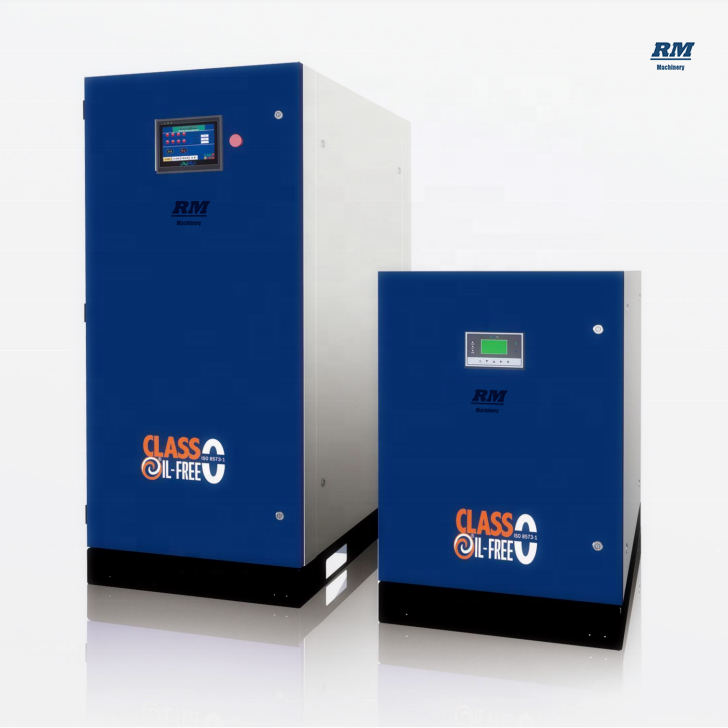

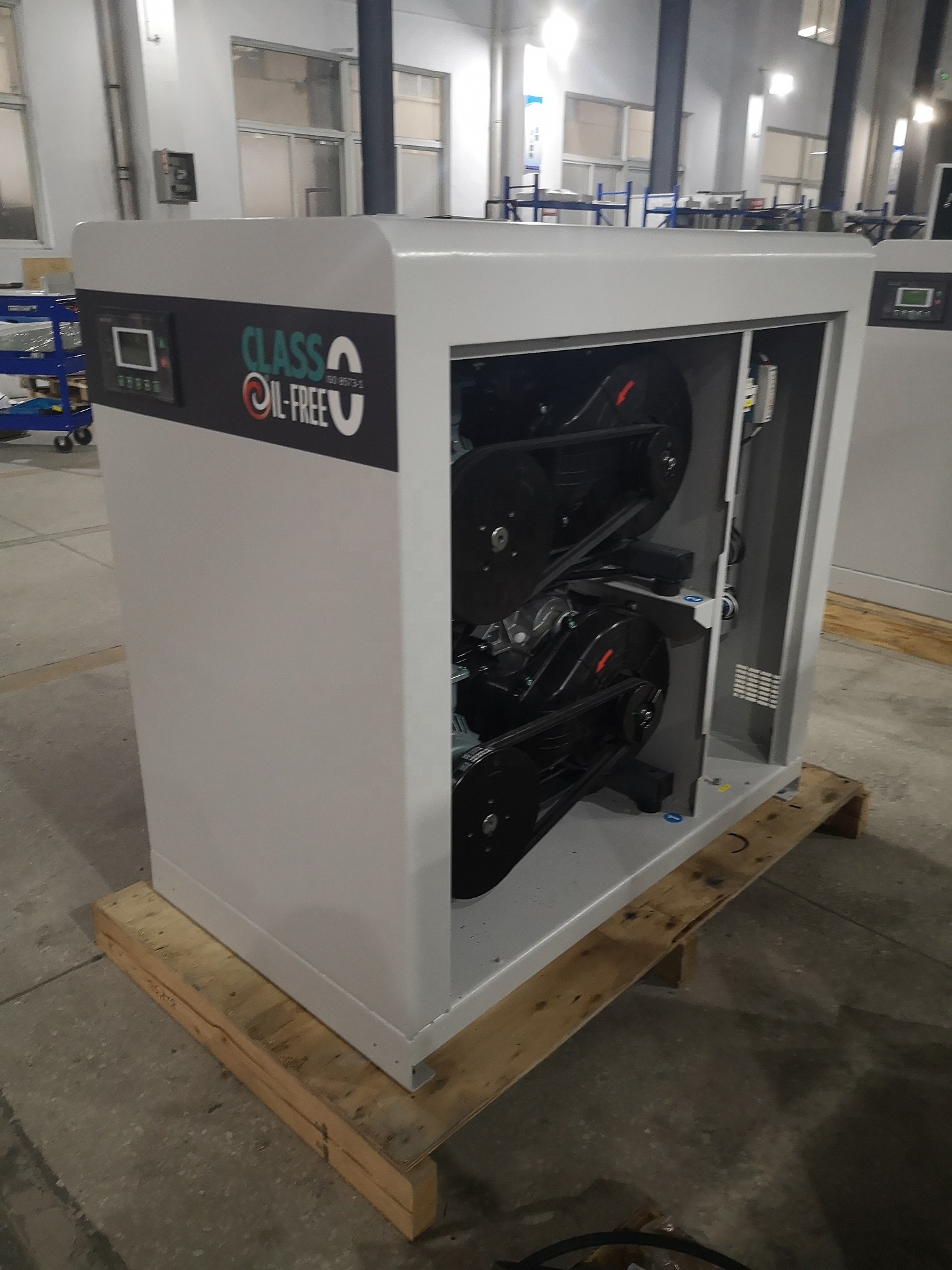

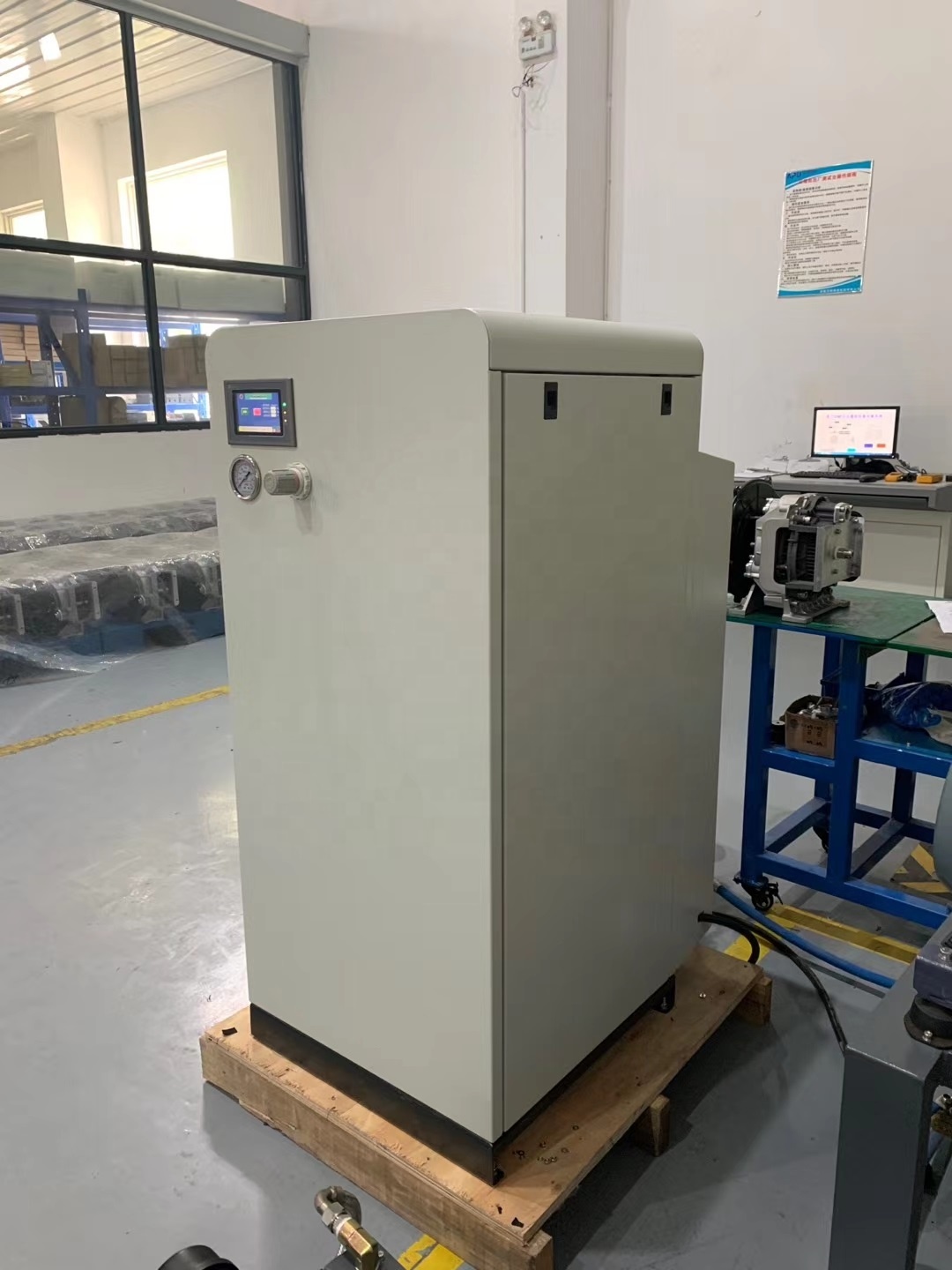

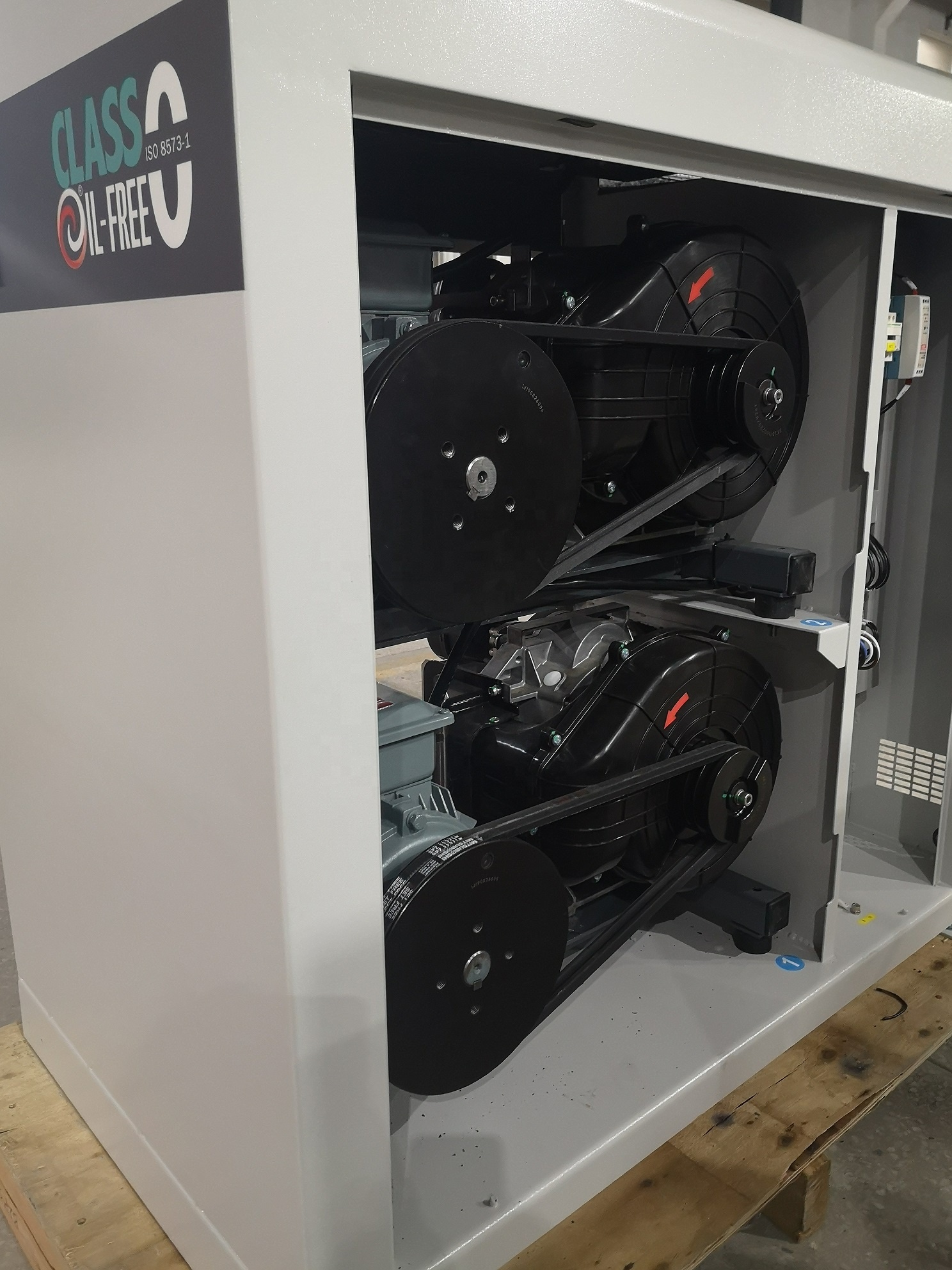

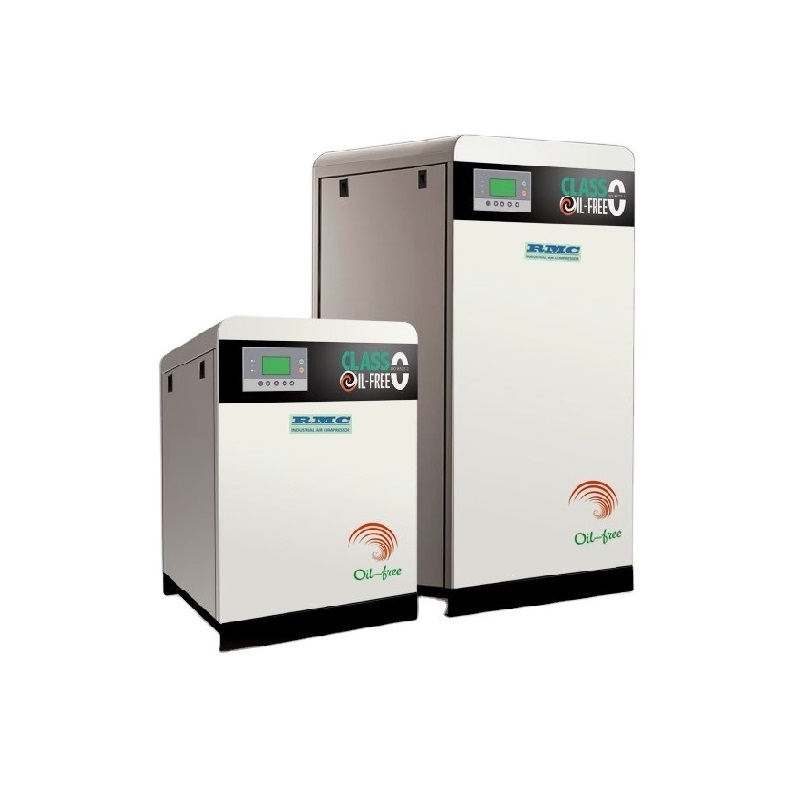

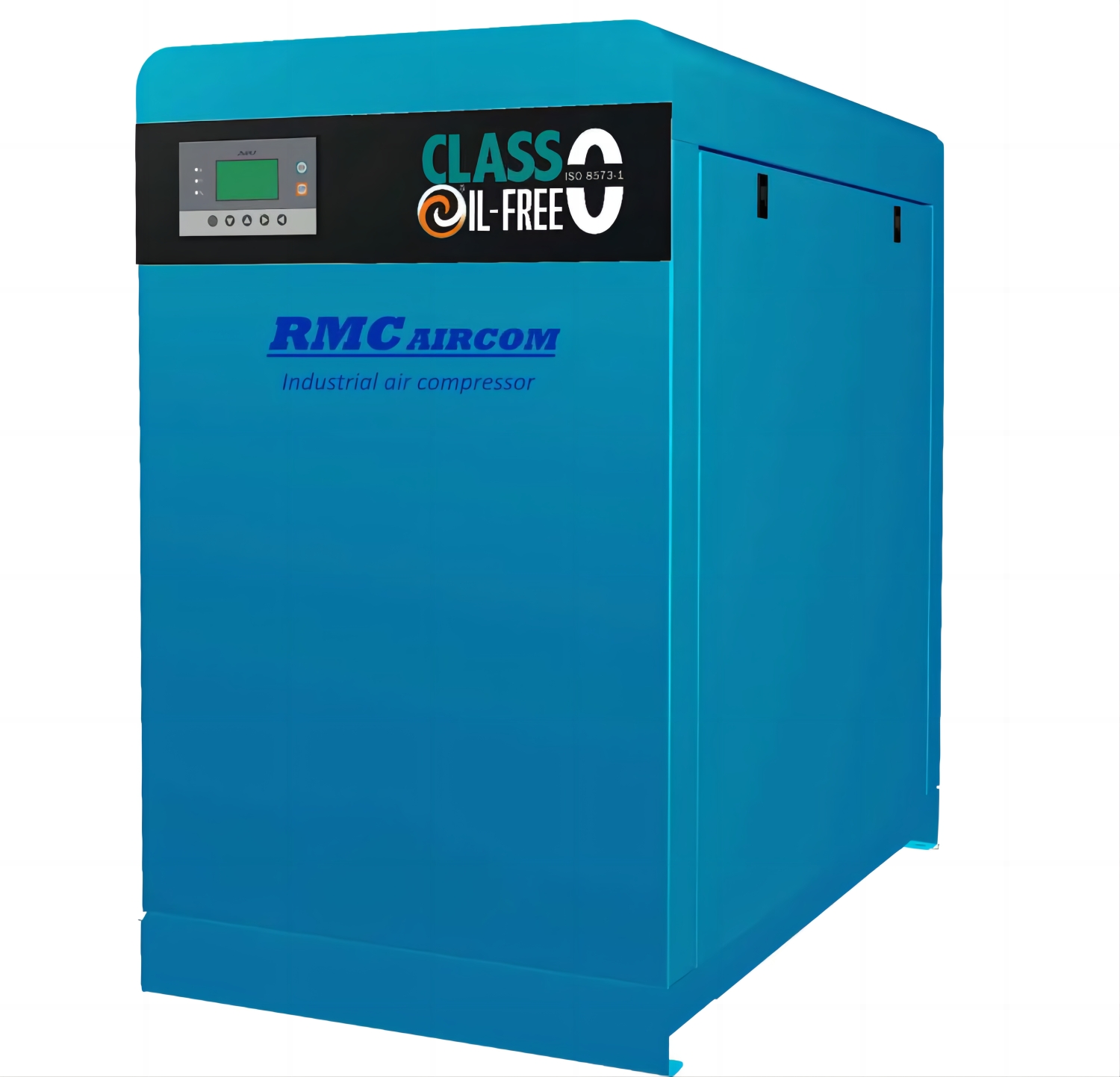

7.5kw/10hp 8bar 800L/min scroll oil free air compressor silent oil free iwata air compressor

• Scroll oil free air compressor

• 7.5kw/10hp

• 800L/min @8bar

• Voltage: 380v/50hz

• PLC control

• Dimension: 1030*590*995mm

• Weight:380kg;

• Noise:55±3dB

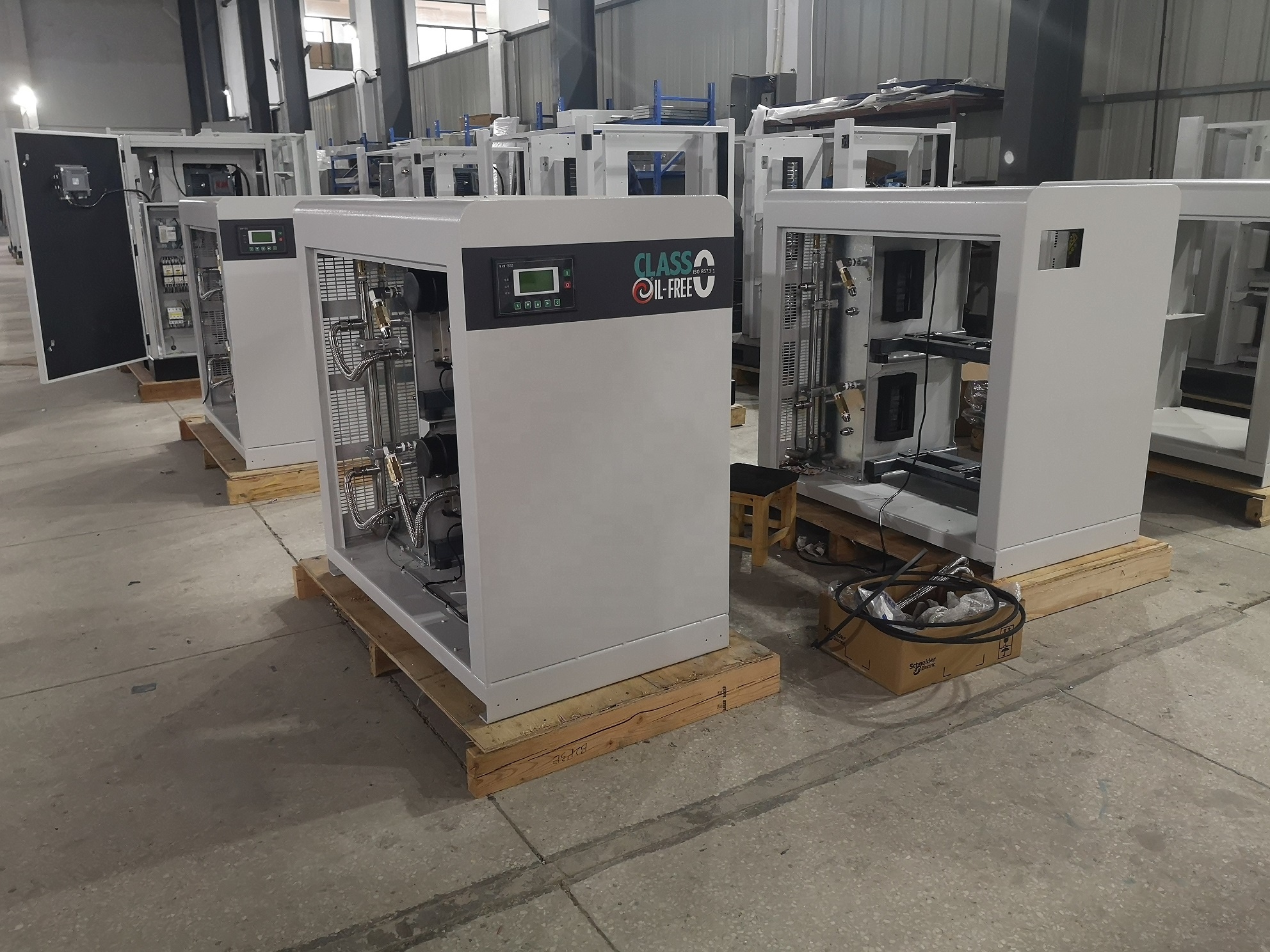

3.7kw 8bar 410L/min scroll air compressor        11kw 8bar 800L/min scroll air compressor             30kw 8bar 3200L/min scroll air compressor

Full range parameters of our scroll oil free air compressors:

Product No.	Product name	Power	Pressure	Air flow	Description
APOXW-410-X	Scroll Airend	3.7kw	0.8MPa	410L/min	Including pulley(Options: heat exchanger, temperature switch, temperature sensor)
APOXW-340X	Scroll Airend	3.7kw	1.0Mpa	340L/min	Including pulley(Options: heat exchanger, temperature switch, temperature sensor)
APOXW-250-X	Scroll Airend	2.2kw	0.8MPa	250L/min	Including pulley(Options: heat exchanger, temperature switch, temperature sensor)
APOXW-140-X	Scroll Airend	1.5kw	0.8MPa	140L/min	Including pulley(Options: heat exchanger, temperature switch, temperature sensor)

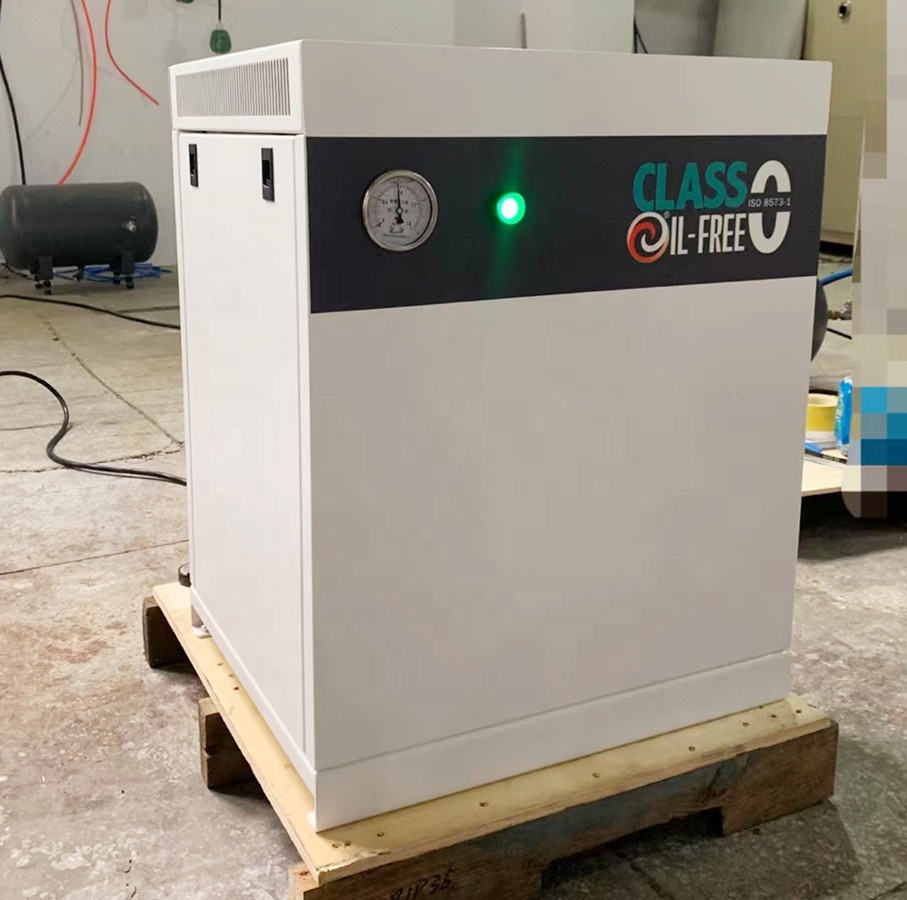

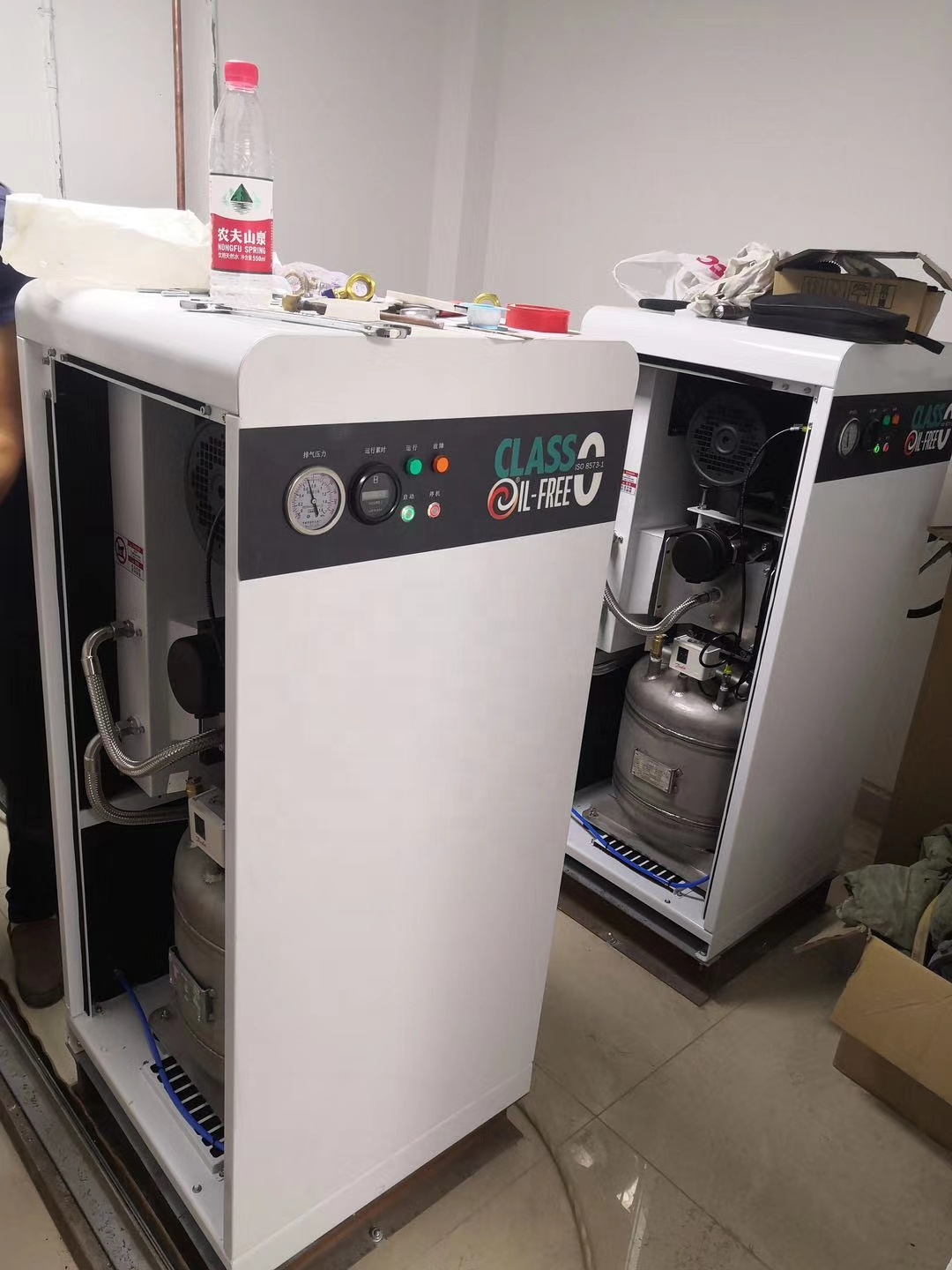

RMC3.7-8A	Scroll Air Compressor	3.7kw	0.8MPa	400L/min	Single 3.7kw airend           Without air tank       Switch control     Dimension: 540*540*750mm Weight:120kg; Noise:48±3dB
RMC3.7-8B	Scroll Air Compressor	3.7kw	0.8MPa	400L/min	Single 3.7kw airend       40L stainless steel tank       Switch control   Dimension: 540*540*750mm Weight:120kg; Noise:48±3dB
RMC2.2-8A	Scroll Air Compressor	2.2kw	0.8MPa	250L/min	Single 2.2kw airend       Without air tank    Switch control       Dimension: 540*540*750mm Weight:110kg;Noise:48±3dB
RMC2.2-8B	Scroll Air Compressor	2.2kw	0.8MPa	250L/min	Single 2.2kw airend   40L stainless steel tank          Switch control Dimension: 540*540*750mm Weight:110kg;Noise:48±3dB
RMC1.5-8A	Scroll Air Compressor	1.5kw	0.8MPa	180L/min	Single 1.5kw airend    Without air tank     Switch control  Dimension: 540*540*750mm Weight:100kg;Noise:48±3dB
RMC1.5-8B	Scroll Air Compressor	1.5kw	0.8MPa	180L/min	Single 1.5kw airend    40L stainless steel tank    Switch control       Dimension: 540*540*750mm Weight:100kg;Noise:48±3dB
RMC7.5-8A	Scroll Air Compressor	7.5kw	0.8MPa	800L/min	2x3.7kw airend   PLC control           Dimension: 1030*590*995mm  Weight:380kg;Noise:55±3dB
RMC11-8A	Scroll Air Compressor	11kw	0.8MPa	1200L/min	3x3.7kw airend            PLC control       Dimension: 1235*740*1270mm    Weight:500kg;Noise:56±3dB
RMC15-8A	Scroll Air Compressor	15kw	0.8MPa	1600L/min	4x3.7kw airend            PLC control       Dimension: 1235*740*1630mm Weight:580kg;Noise:57±3dB
RMC18.5-8A	Scroll Air Compressor	18.5kw	0.8MPa	2000L/min	5x3.7kw airend              PLC control    Dimension: 1235*740*1990mm Weight:660kg;Noise:58±3dB
RMC22-8A	Scroll Air Compressor	22kw	0.8MPa	2400L/min	6x3.7kw airend       PLC control      Motor: Toshiba        Dimension: 1580*1235*1630mm Weight:900kg;Noise:59±3dB
RMC30-8A	Scroll Air Compressor	30kw	0.8MPa	3200L/min	8x3.7kw airend      PLC control           Motor: Toshiba        Dimension: 1580*1235*1630mm  Weight:1060kg;Noise:59±3dB
RMC37-8A	Scroll Air Compressor	37kw	0.8MPa	4000L/min	10x3.7kw airend         PLC control         Motor: Toshiba                       Dimension: 1580*1235*1990mm Weight:1260kg;Noise:59±3dB

Scroll oil free air compressor applications:

Scroll air compressors are typically 100% oil-free, and are most suitable for applications in industries like research and development labs, hospitals, universities, food and beverage, dental applications, electronics and the pharmaceutical industry. They are suited to the types of industries because they are ISO 8573-1 CLASS 0 certified compressors are easy to maintain and operate, and have minimal footprint to save space in your lab or facility.

Packaging & Shipping

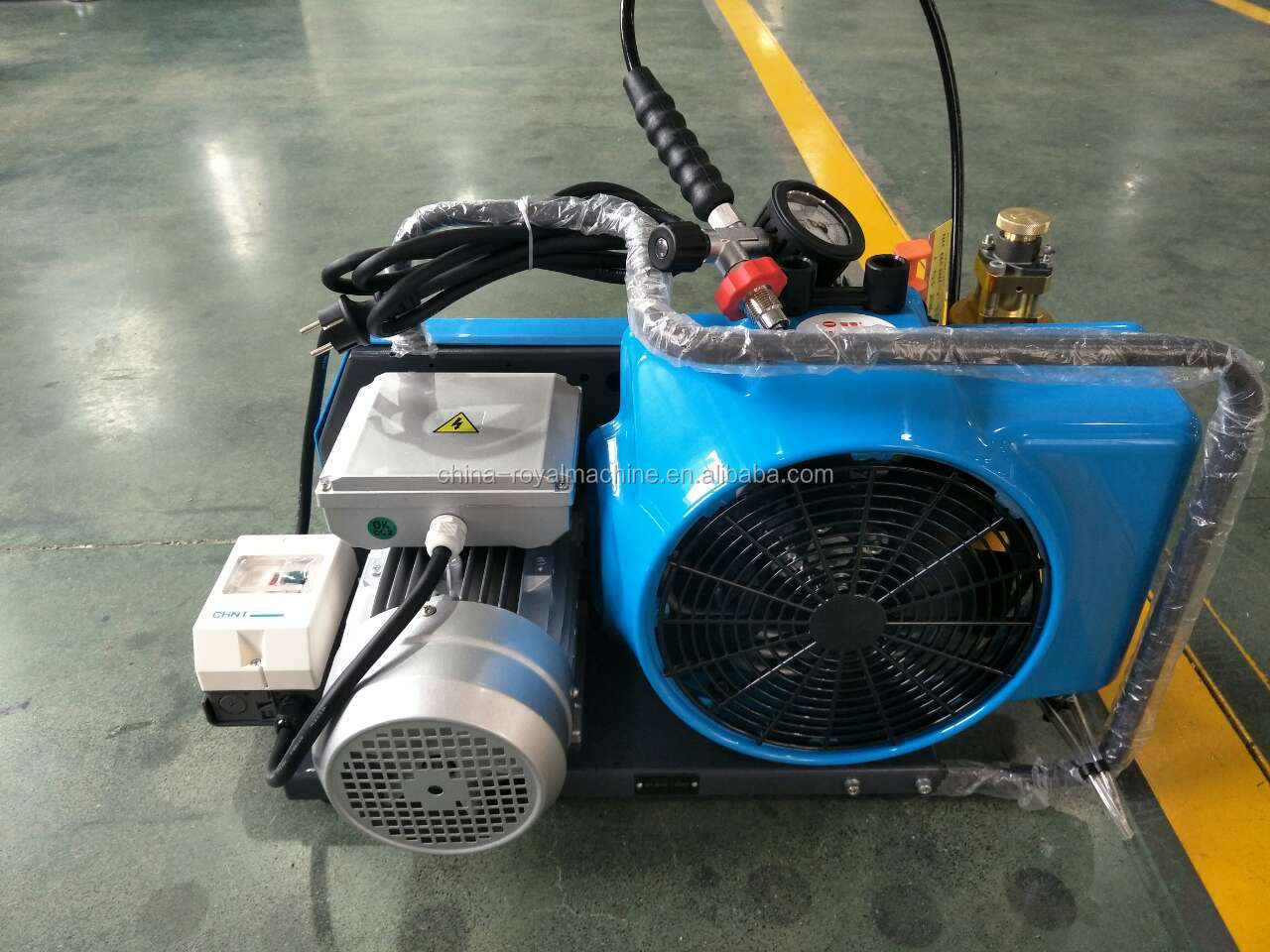

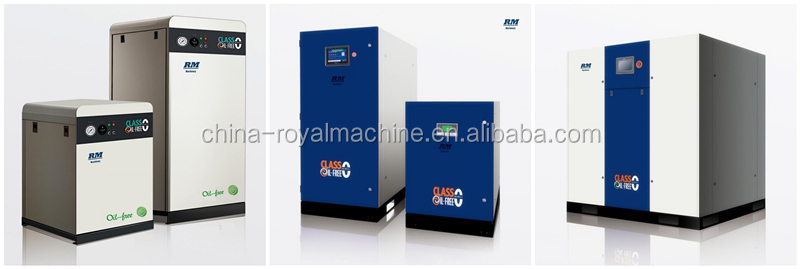

Screw air compressors package   Oil-free Scroll air compressors       200bar-300bar Air compressors

Company Information

Shanghai Royal Machinery Co.,Ltd is a professional company of industrial air compressors, air treatment and air compressor spare parts, with engineers and sales people who have over 8 years experience, Royal Machinery has two business divisions, one is our own brand products, the other brands are Ingersoll Rand and Compair products. We have been marketing industrial compressed air equipment to global market since 2017 and the main assembling plants cover more than 50,000 square meters and 320 employees. The range of our compressors supplying start from the smallest compressors used by individuals to very large compressors used in heavy industrial applications. We started the business as a close partner to our customers, our sales team can provide you competitive price with high quality products, with our customers supporting, our team will get all the orders fulfilled on time and provide you excellent after-sales service. Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, Mining and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors, CNG compressors and CNG related equipment, also high pressure scuba air compressors. Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with us together for a fruitful future.

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual,  oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list,  installation drawings, technical support and maintenance training.

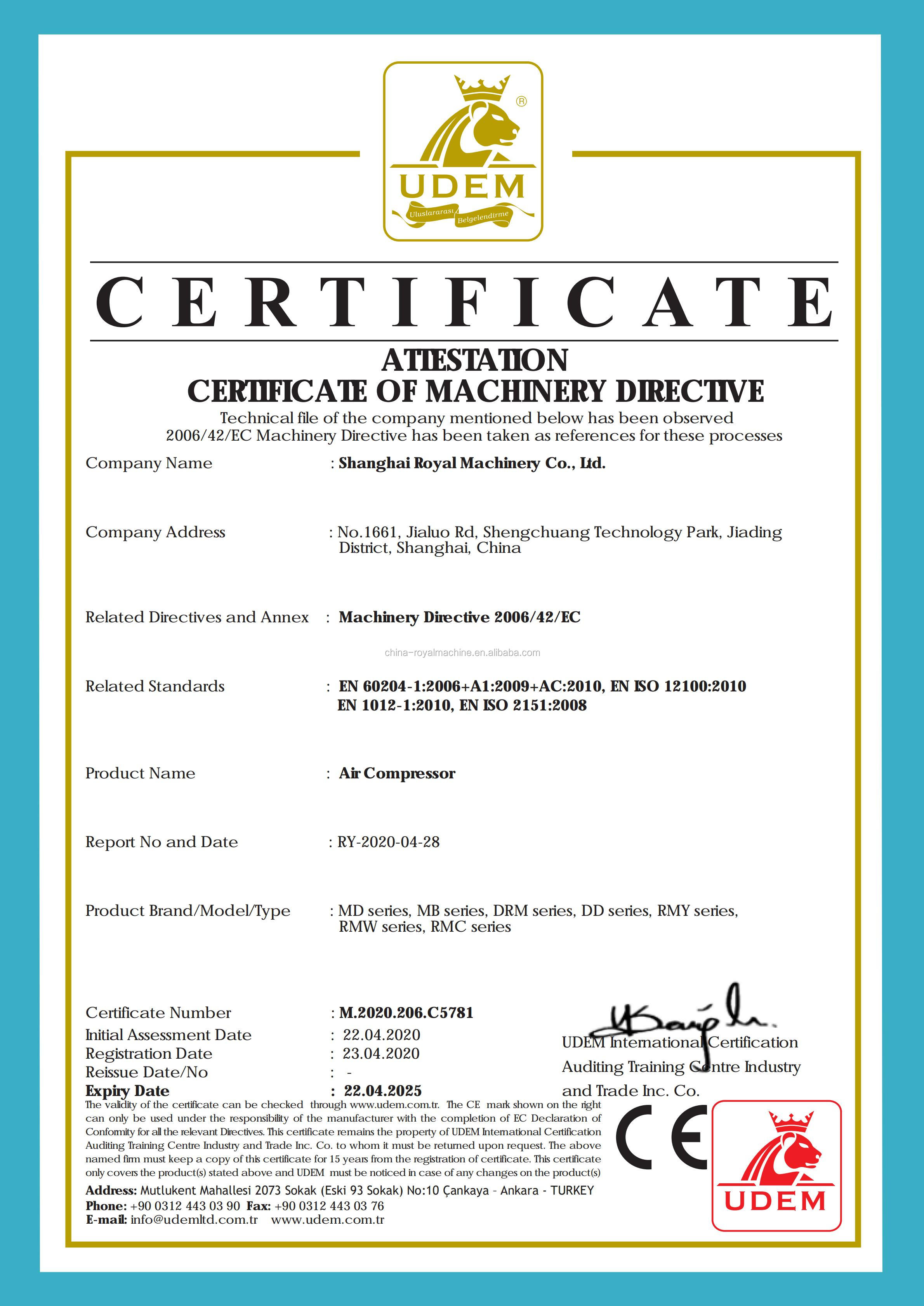

Our CE certificate:

Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.

• Consumer grade air compressors can be described as a pancake or single-stage model. They’re used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.

• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.

• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Here we offer i screw air compressors:

Power range: 5kw-400kw

Air flow: 1m3/min-75m3/min
