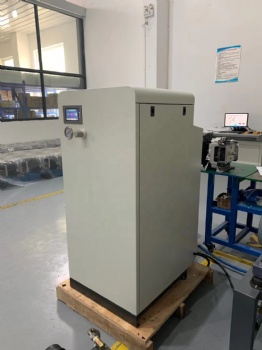

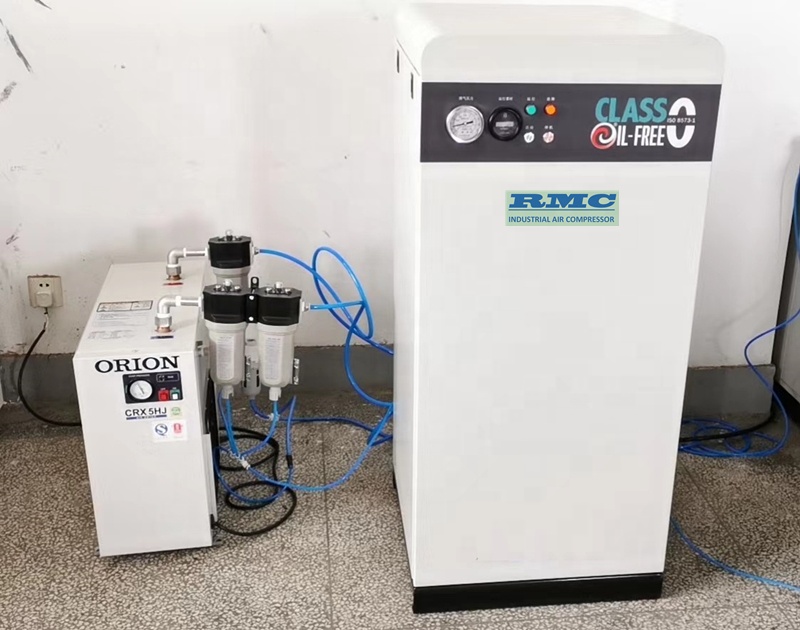

RMC1.5-8A 1.5kw oil free scroll air compressor

Oil-less scroll air compressor
Special internal coating to maximize performance
Non corrosive after cooler assembly – will not rust
High-quality cabinetry with steel-insulated panels and extruded aluminum framework on a rugged steel base

100% Oil-Free Air

The simple tip seal design of a scroll compressor ensures no

metal-to-metal contact anywhere. Therefore, the technology

does not require lubrication, ensuring high-quality, oil-free air.



Application:

  • Hospitals, labs, universities

  • Pharmaceutical, biotech

  • Medical devices, plastics

  • Canning, beverages, brewery

  • Glass manufacturing

  • Electronics, semiconductor

  • Food processing

  • Electronics assembling

  • Textiles industry

  • Bottling, distillery

  • Printing industry

  • Turf management




Product Description

 scroll air compressor_

Scroll Air Compressor Compression Principle:

  • The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram,  the air is sucked into the space between the orbiting scroll and the stationary scroll, the volume of the crescent compression chamber gradually decreases, and then the air is discharged from the exhaust port at the center of the stataionary scroll after being compressed.

  • High-precision processing technology is required to produce the components that make up a Scroll Oil Free Air Compressor.

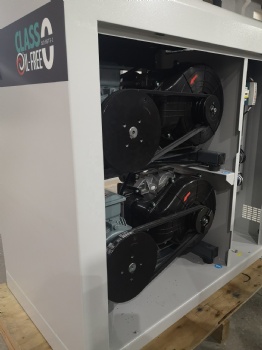

Main Structure of Scroll Oil Free Air end.



Fetures of Scroll oil free air compressors:

  • Low specific power, High energy efficiency.

  • Long term warranty for 2 years, and low maintenance.

  • Small footprint & extremely quite operation.

  • Noise of the complete system equipped with 3.7kw scroll oil free compressor is under 59dB.

  • Low vibration,  under standard working conditions, the vibraion of main unit is less than 7.1mm/s.

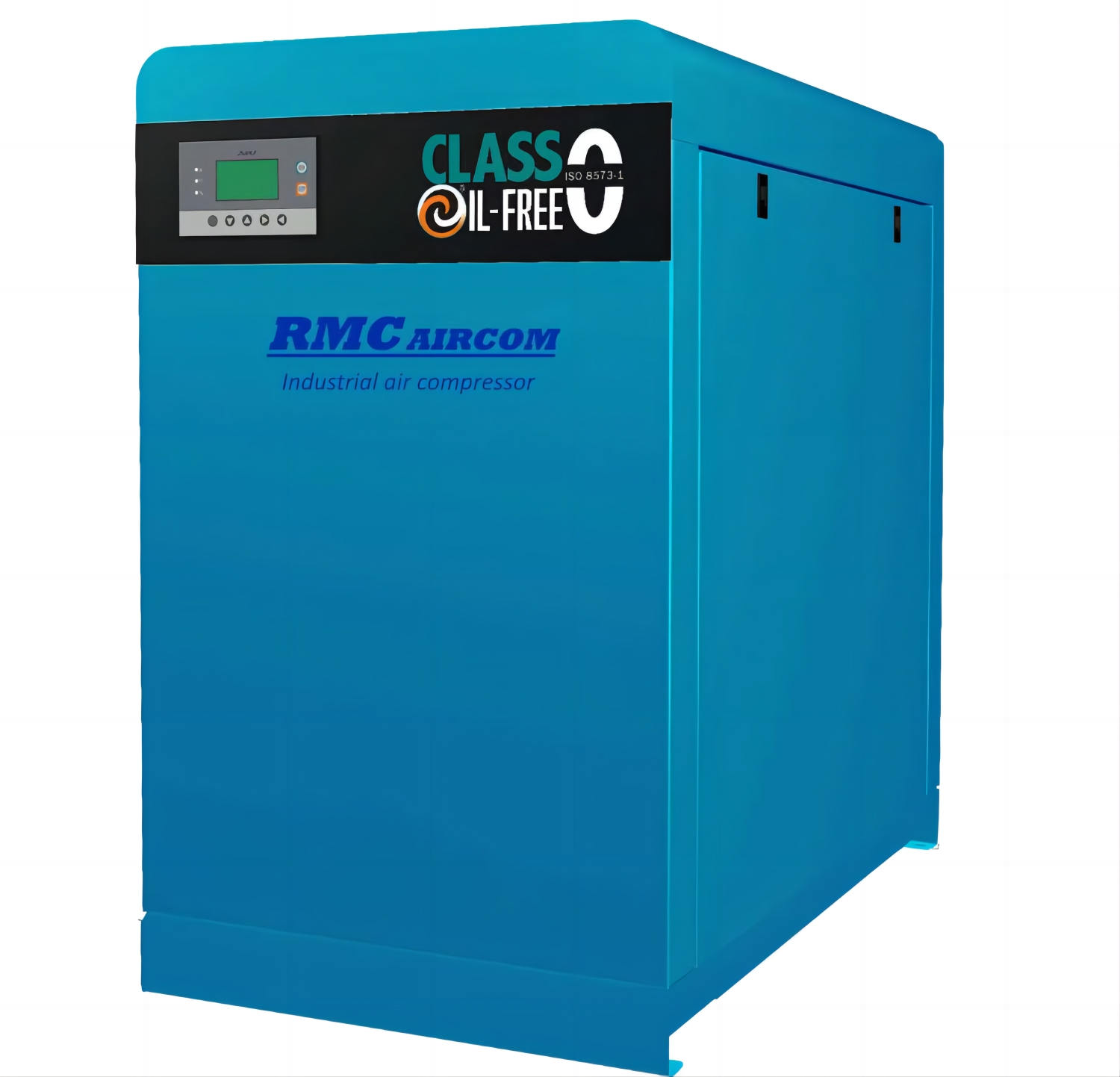

7.5kw/10hp 8bar 800L/min scroll oil free air compressor silent oil free iwata air compressor

  • Scroll oil free air compressor

  • 7.5kw/10hp

  • 800L/min @8bar

  • Voltage: 380v/50hz

  • PLC control

  • Dimension: 1030*590*995mm

  • Weight:380kg;

  • Noise:55±3dB


3.7kw 8bar 410L/min scroll air compressor        11kw 8bar 800L/min scroll air compressor             30kw 8bar 3200L/min scroll air compressor



Full range parameters of our scroll oil free air compressors:

Product No.Product namePowerPressureAir flowDescription
APOXW-410-XScroll Airend3.7kw0.8MPa410L/min

Including pulley(Options: heat exchanger,

temperature switch, temperature sensor)

scroll airend 1.png



scroll airend 2.png







APOXW-340XScroll Airend3.7kw1.0Mpa340L/min

Including pulley(Options: heat exchanger,

temperature switch, temperature sensor)

APOXW-250-XScroll Airend2.2kw0.8MPa250L/min

Including pulley(Options: heat exchanger,

temperature switch, temperature sensor)

APOXW-140-XScroll Airend1.5kw0.8MPa140L/min

Including pulley(Options: heat exchanger,

temperature switch, temperature sensor)

RMC3.7-8AScroll Air Compressor3.7kw0.8MPa400L/min
  • Single 3.7kw airend

  • Without air tank

  •  Switch control

  • Dimension: 540*540*750mm

  • Weight:120kg; Noise:48±3dB

RMC3.7-8BScroll Air Compressor3.7kw0.8MPa400L/min
  • Single 3.7kw airend

  • 40L stainless steel tank

  • Switch control

  • Dimension: 540*540*750mm

  • Weight:120kg; Noise:48±3dB

RMC2.2-8AScroll Air Compressor2.2kw0.8MPa250L/min
  • Single 2.2kw airend

  • Without air tank

  • Switch control

  • Dimension: 540*540*750mm

  • Weight:110kg;Noise:48±3dB

RMC2.2-8BScroll Air Compressor2.2kw0.8MPa250L/min
  • Single 2.2kw airend

  • 40L stainless steel tank

  • Switch control

  • Dimension: 540*540*750mm

  • Weight:110kg;Noise:48±3dB

RMC1.5-8AScroll Air Compressor1.5kw0.8MPa180L/min
  • Single 1.5kw airend

  • Without air tank

  • Switch control

  • Dimension: 540*540*750mm

  • Weight:100kg;Noise:48±3dB

RMC1.5-8BScroll Air Compressor1.5kw0.8MPa180L/min
  • Single 1.5kw airend

  • 40L stainless steel tank

  • Switch control

  • Dimension: 540*540*750mm

  • Weight:100kg;Noise:48±3dB

RMC7.5-8AScroll Air Compressor7.5kw0.8MPa800L/min
  • 2x3.7kw airend

  • PLC control

  • Dimension: 1030*590*995mm

  • Weight:380kg;Noise:55±3dB

20200603195901
RMC11-8AScroll Air Compressor11kw0.8MPa1200L/min
  • 3x3.7kw airend

  • PLC control

  • Dimension: 1235*740*1270mm

  • Weight:500kg;Noise:56±3dB

RMC15-8AScroll Air Compressor15kw0.8MPa1600L/min
  • 4x3.7kw airend

  • PLC control

  • Dimension: 1235*740*1630mm

  • Weight:580kg;Noise:57±3dB

scroll air compressor oil.png
RMC18.5-8AScroll Air Compressor18.5kw0.8MPa2000L/min
  • 5x3.7kw airend

  • PLC control

  • Dimension: 1235*740*1990mm

  • Weight:660kg;Noise:58±3dB

RMC22-8AScroll Air Compressor22kw0.8MPa2400L/min
  • 6x3.7kw airend

  • PLC control

  • Motor: Toshiba

  • Dimension: 1580*1235*1630mm

  • Weight:900kg;Noise:59±3dB


RMC30-8AScroll Air Compressor30kw0.8MPa3200L/min
  • 8x3.7kw airend

  • PLC control

  • Motor: Toshiba

  •  Dimension: 1580*1235*1630mm

  •  Weight:1060kg;Noise:59±3dB

RMC37-8AScroll Air Compressor37kw0.8MPa4000L/min
  • 10x3.7kw airend

  • PLC control

  • Motor: Toshiba

  • Dimension: 1580*1235*1990mm

  • Weight:1260kg;Noise:59±3dB



Scroll oil free air compressor applications:

Scroll air compressors are typically 100% oil-free, and are most suitable for applications in industries like research and development labs, hospitals, universities, food and beverage, dental applications, electronics and the pharmaceutical industry. They are suited to the types of industries because they are ISO 8573-1 CLASS 0 certified compressors are easy to maintain and operate, and have minimal footprint to save space in your lab or facility.




Packaging & Shipping

20150817_092229  _20210107174130      20210519173545.jpg               209131325 package 43217

Screw air compressors package   Oil-free Scroll air compressors       200bar-300bar Air compressors



For our screw air compressors, we packed them by plywood case for LCL shipping, for full container shipping, we will pack the air compressors depend on customer request, sometimes by pallet too.

We packed all of our oil-free scroll air compressors by plywood case, because they take not much big space, and for good safe transport, if oil-free scroll airend, we will pack them by pp foam first, after that by plywood case.For our small breathe air compressors,we all packed them by plywood case, normally they are 2.2kw 225bar or 330bar pressure, take very small space, for scuba diving and firefighting breathe air.

Company Information

Shanghai Royal Machinery Co.,Ltd is a professional company of industrial air compressors, air treatment and air compressor spare parts, with engineers and sales people who have over 8 years experience, Royal Machinery has two business divisions, one is our own brand products, the other brands are Ingersoll Rand and Compair products. We have been marketing industrial compressed air equipment to global market since 2017 and the main assembling plants cover more than 50,000 square meters and 320 employees. The range of our compressors supplying start from the smallest compressors used by individuals to very large compressors used in heavy industrial applications. We started the business as a close partner to our customers, our sales team can provide you competitive price with high quality products, with our customers supporting, our team will get all the orders fulfilled on time and provide you excellent after-sales service. Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, Mining and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors, CNG compressors and CNG related equipment, also high pressure scuba air compressors. Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with us together for a fruitful future.


Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual,  oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list,  installation drawings, technical support and maintenance training.

Our CE certificate:

CE_00



Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.

  • Consumer grade air compressors can be described as a pancake or single-stage model. They’re used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.

  • Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.

  • Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Here we offer i screw air compressors:

Power range: 5kw-400kw

Air flow: 1m3/min-75m3/min
